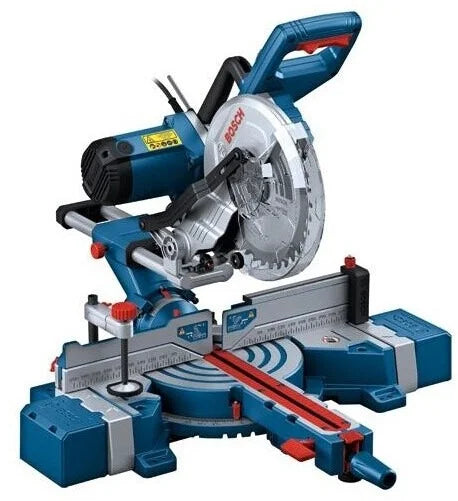

The GCM 305-254 D combines dual-function capability with professional-grade precision, delivering both circular and mitre cutting in a single robust machine. Engineered for contractors and serious DIY enthusiasts, this hardware powerhouse features advanced electronics for consistent performance across hardwoods, softwoods, and composite materials. The precision-engineered blade system ensures clean, accurate crosscuts and angled mitre work with minimal tear-out. Built with industrial-strength construction, it handles demanding job site conditions while maintaining reliability. Ideal for framing, trim work, and detailed carpentry projects requiring versatile cutting solutions.
Features
| performance data | |
|---|---|
| Max. rotation speed | 4.500 |
| Power | 1.500 Watt |
| Tilt radius | 47 ° |
| Diet | electrical grid |
| technical features | Laser guidance, Soft start |
| functionality | |
| Safety devices | Blade stop, Overload protection |

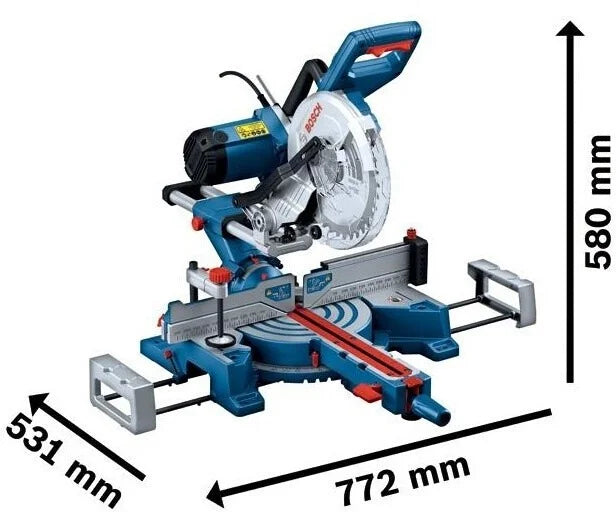

| measurements and weight | |
| Weight | 20 kg |
| Blade diameter | 254 mm |
| Boring (Ø) | 30 mm |
| cutting mode | |
| Max. cutting depth at 90° | 90 mm |
| Max. cutting depth at 90° | 305 mm |
| Max. cutting depth 45° chamfer | 90 mm |
| Maximum cutting width 45° bevel | 215 mm |
| Max. cutting depth at 45° | 55 mm |
| Max. cutting width at 45° | 305 mm |
| Types of cut | Diagonal, Perpendicular |
| accessories | |
| Included in delivery | 1 lama per sega |
