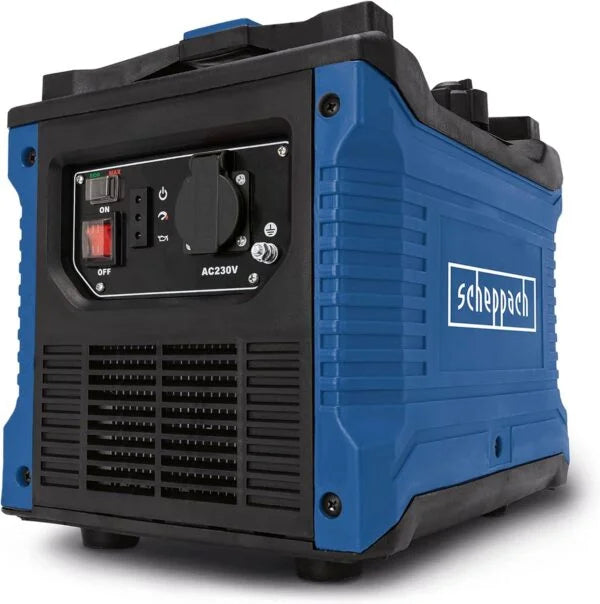

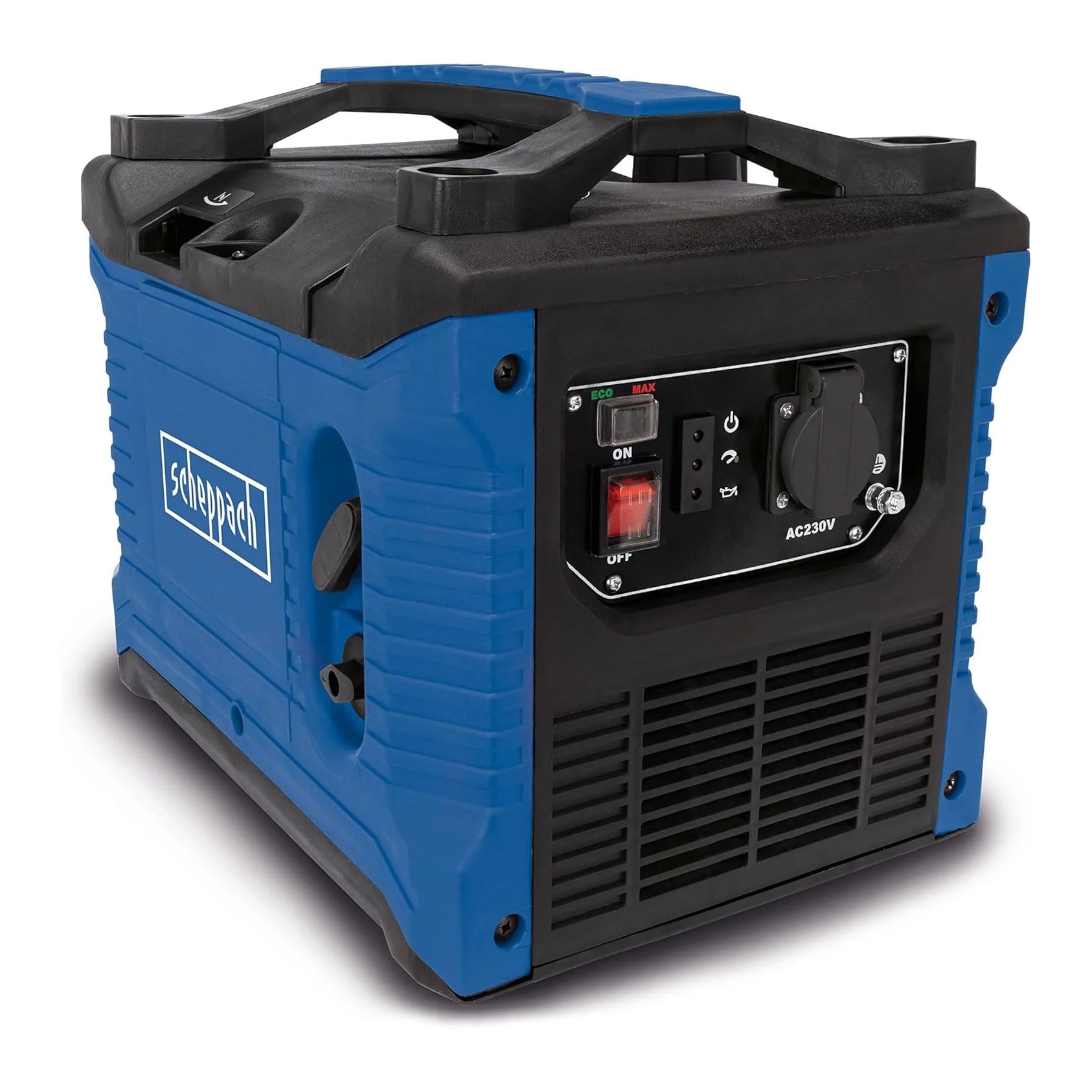

Inverter Generator SG1600i, Scheppach (17325) Hardware/Electronics

• 1000W generator with inverter technology for devices with sensitive electronics, power tools, etc.
• 53.5cc air-cooled 4-stroke petrol engine for reliable performance
• Fuel consumption at 2/3 load: 0.68 l/h with an operating time of 5.9 h

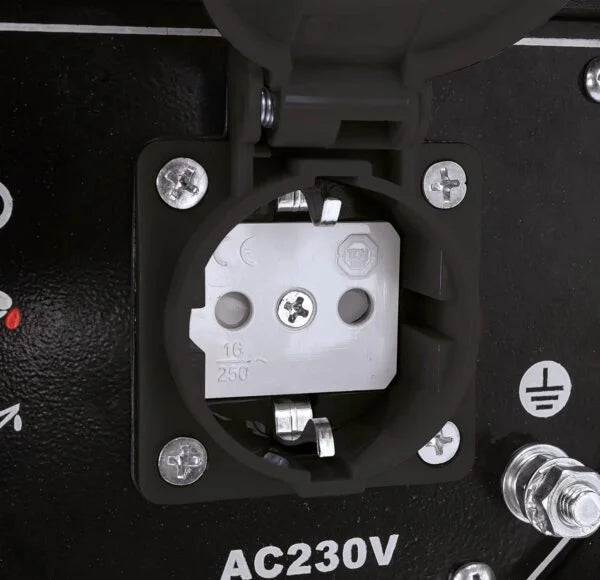

• Features a 230V AC socket and a recoil starter
• Convenient operation: energy saving mode, power indicator, overload indicator, oil protection indicator
• Compact and lightweight design with handle for easy transport
• Robust rubber feet for secure positioning

SPECIFICATIONS – ENGINE

• Model Single cylinder; 4-stroke petrol engine

• Maximum engine power 2.04 HP

• Displacement 53.5 cc

• Starting Recoil

• start Tank capacity 4 lt

SPECIFICATIONS – GENERATOR

• Dimensions L x W x H 410 x 310 x 383 mm

• Voltage control inverter

• Rated power / max. power 1000/1020 W

• Socket 230V~

• Frequency AC 50 Hz

• Overload protection Yes

• Low oil warning Yes

• Net/gross weight 12.7/14.3 kg

• Packaging dimensions 420 x 320 x 398 mm

Characteristics

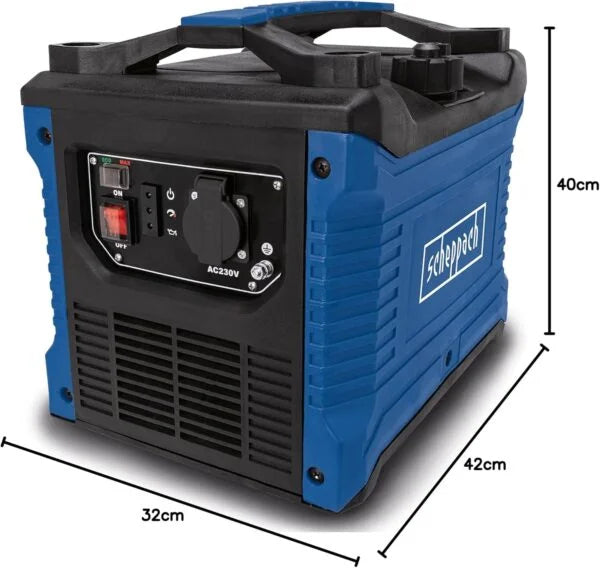

Dimensions & weight

• Length: 42 cm
• Width: 32 cm
• Height: 39.8 cm
• Weight: 12.7 kg

Performance

• Power output: 1020 W
• Operating time (autonomy): 5.9 hours
• Current intensity: 4.3 A
• Frequency: 50 Hz

Engine & fuel

• Generator type: Inverter
• Engine type: 4-stroke
• Displacement: 53.5 cm³
• Fuel type: Gasoline
• Energy type: Thermal
• Starting system: Manual (recoil start)

Capacity

• Fuel tank capacity: 0.535 litres

Design

• Material: Rubber
• Colour: Blue
• Shape: Rectangular

General information

• Items per package: 1
• Country of origin: Made in China
• Warranty: 5 years
• Spare parts availability: 10 years
• ManoMano reference: ME55973447
• MMID: 184405489247
• Manufacturer reference: Not specified
