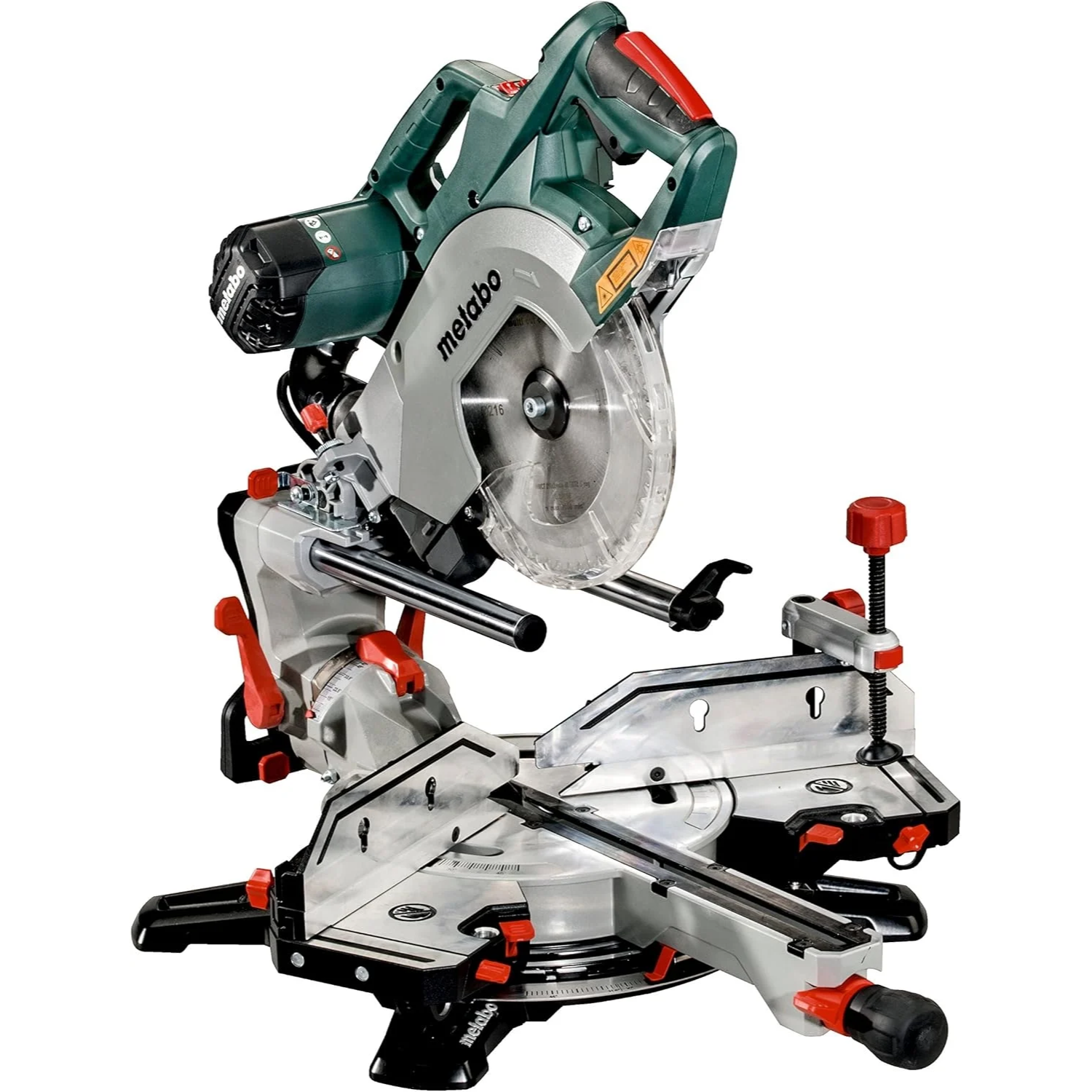

Metabo KGSV 72 Xact SYM

The Metabo KGSV 72 Xact SYM is a precision sliding compound miter saw engineered for demanding woodworking and construction applications. Featuring a powerful motor and dual laser guidance system, it delivers accurate crosscuts and angled cuts with exceptional repeatability. The synchronized sliding mechanism ensures smooth operation across extended workpieces, while the robust construction handles hardwoods and composite materials with ease. Ideal for professional craftspeople seeking reliable performance and precision in every cut.

• Patented, unique combination of a panel saw and a precision slat saw with a symmetrically adjustable stop system
• Quick and precise mitre cuts, simply by transferring the angle from the bevel to the stop system, without having to do calculations or take measurements
• Traction function with compact design that does not take up much space behind the saw
• Maximum flexibility when cutting thanks to the table that rotates on both sides and the head that can be tilted on both sides
• Double line laser for exact cutting line indication to the left and right of the blade
• Variable speed for a wide range of applications, e.g. for cutting aluminium profiles and plastics
• With »multi cut« blade (flat/trapezoidal tooth) for high cutting quality and long service life, e.g. in laminates and aluminium profiles
• Compact lightweight with ergonomic handles, ideal for mobile use
• Effective chip extraction thanks to the integrated chip chute
• Quick and precise adjustment of the most common angles using the snap points
• Bright LED work light to illuminate the cutting line (mains powered, no batteries required)
• High, laterally sliding stops for safe cuts
• Depth stop for easy grooving
• Easy blade replacement via shaft lock; no need to dismantle the pendulum guard

Technical Data

• Dimensions (L × W × H): 660 × 540 × 415 mm

• Max. cutting width (90° / 45°): 305 / 215 mm

• Max. cutting depth (90° / 45°): 72 / 42 mm

• Cutting capacity (90° / 90°): 305 × 72 mm

• Cutting capacity (45° / 45°): 215 × 42 mm

• Turntable adjustment (left / right): 50° / 50°

• Blade tilt (left / right): 47° / 47°

• Blade diameter: 216 mm

• Rated power consumption S1 (100% duty cycle): 1500 W

• Rated power consumption S6 (20% duty cycle): 1800 W

• Max. no-load speed: 2200 – 6300 min⁻¹

• Cutting speed: 25 – 70 m/s

• Weight: 18.3 kg

• Cable length: 10 ft

Acoustic Emission

• Sound pressure level (LpA): 84 dB(A)

• Sound power level (LwA): 97 dB(A)

• Measurement uncertainty (K): 3 dB(A)
