Scheppach HM100LXU Troncatrice a trazione 254, 230V 2000 Watt – 5901202901

General Description:

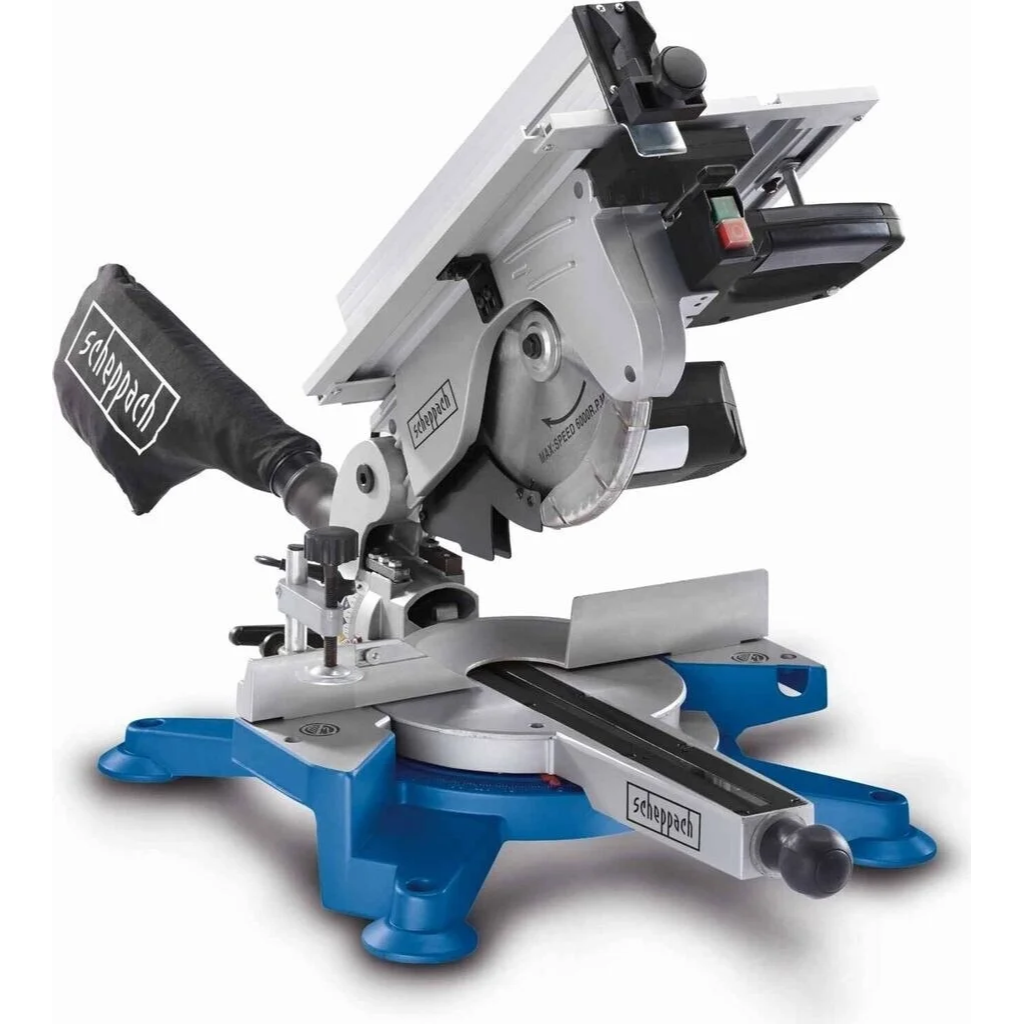

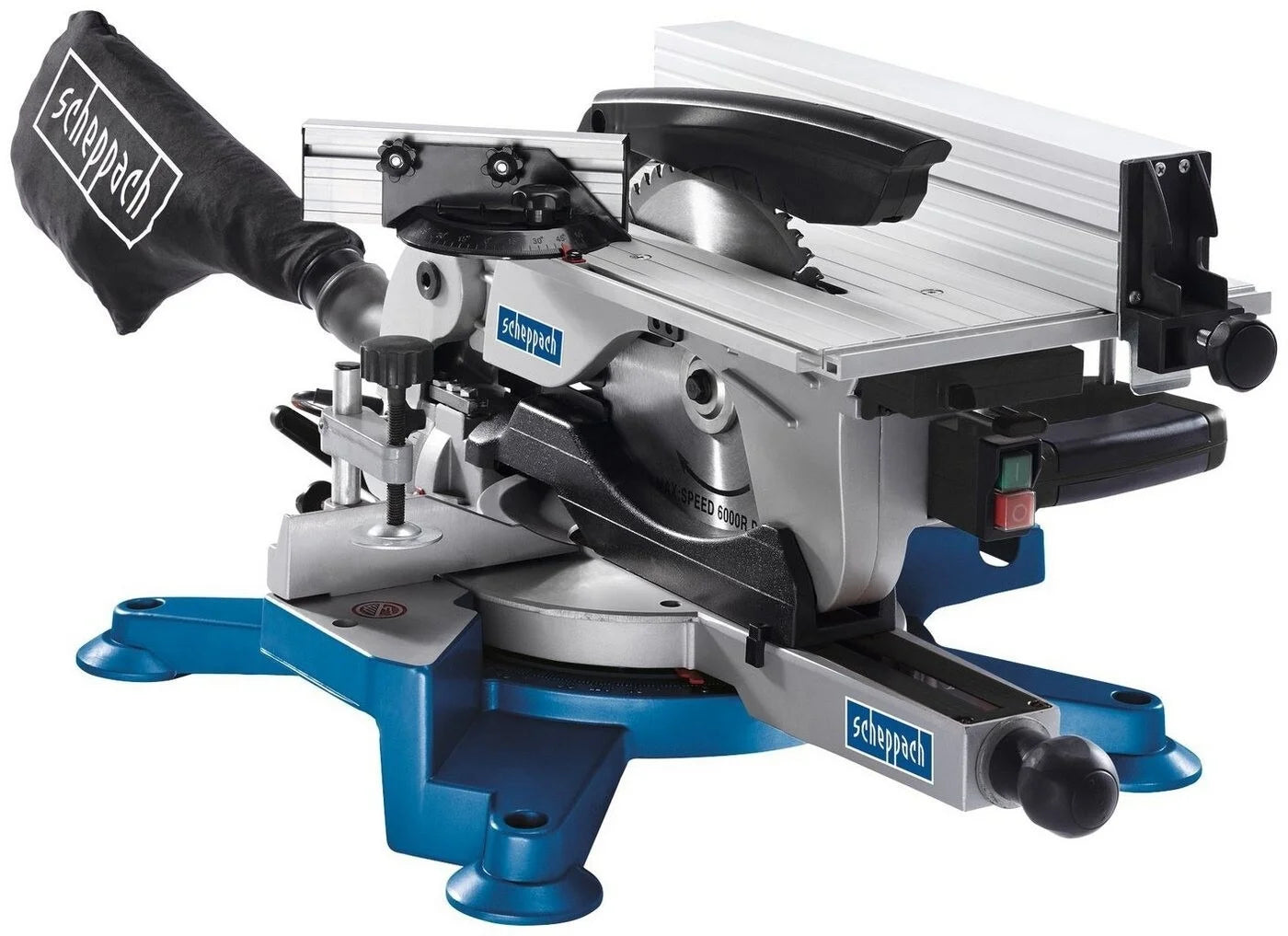

The Scheppach HM100LXU is an electric radial miter saw with a sliding function, designed to make straight, mitre, and inclined cuts with great precision. Thanks to its 254 mm blade and powerful 2000 Watt motor , this machine is ideal for working wood, composite materials, and plastics. It is designed for craftsmen, carpenters, hobbyists, and DIY enthusiasts.

Technical Features:

• Model: HM100LXU
• Product code: 5901202901
• Power supply: 230 Volts ~ 50 Hz
• Power consumption: 2000 Watt
• No-load speed: 5000 rpm
• Blade type: 254mm diameter, 30mm center hole, 60 carbide teeth
• Traction function (sliding): Yes, on double sliding guide
• Structure: Die-cast aluminum (strong and lightweight)
• Laser guide for cutting: Integrated
• Dust extraction connection: Present (dust bag included)

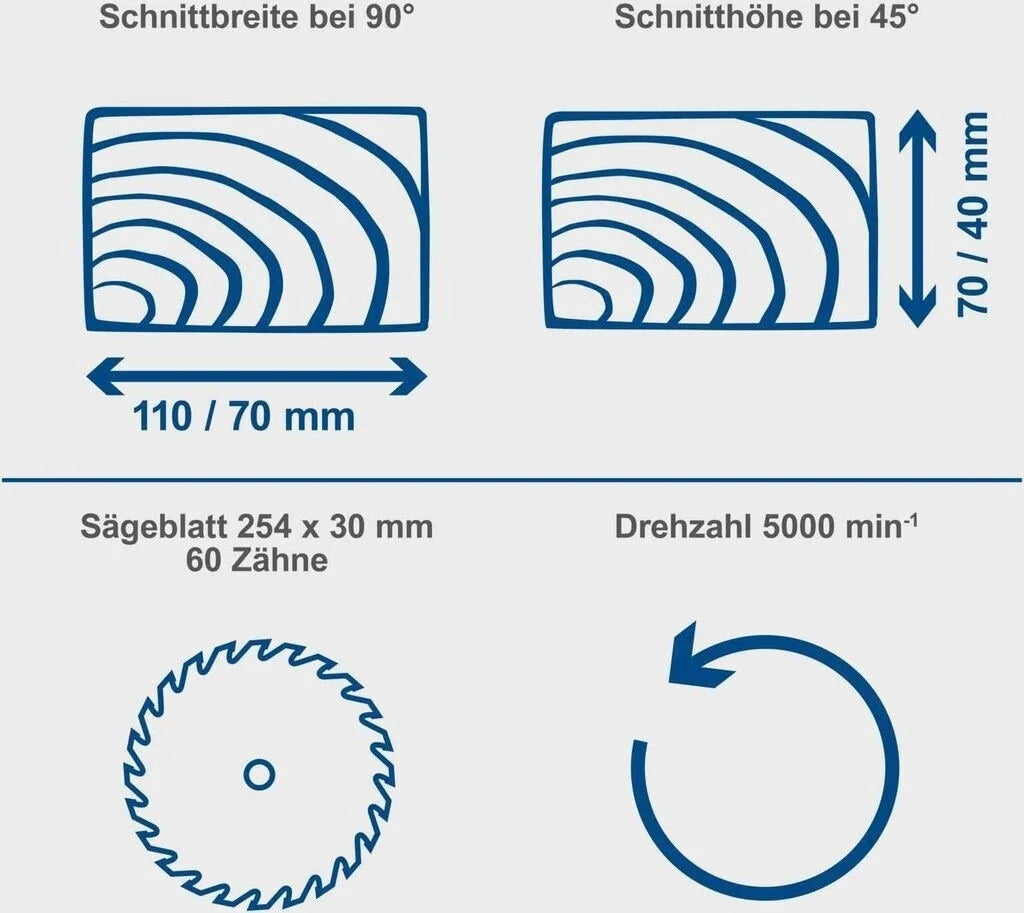

Cutting Capacity:

• Swivel plane angle: from -45° to +45° with predefined positions
• Blade tilt: up to 45° to the left

Equipment Included:

• 254mm blade, 60 teeth (assembled)
• Dust collection bag
• Workpiece locking clamp
• Side extensions for supporting long pieces
• Blade change key
• Multilingual user manual

Dimensions and Weight:

• Overall dimensions: approx. 81 × 46 × 39.5 cm
• Net weight: about 15.7 kg
• Gross weight (packed): approx. 18 kg

Main Benefits:

• Powerful motor, ideal for cutting hard materials
• High cutting capacity thanks to the sliding function
• Integrated laser for maximum precision
• Sturdy yet lightweight construction for easy transport
• Ideal for cutting wood, plastic, laminates, skirting boards, joists and panels
• Easy to use, even for inexperienced users

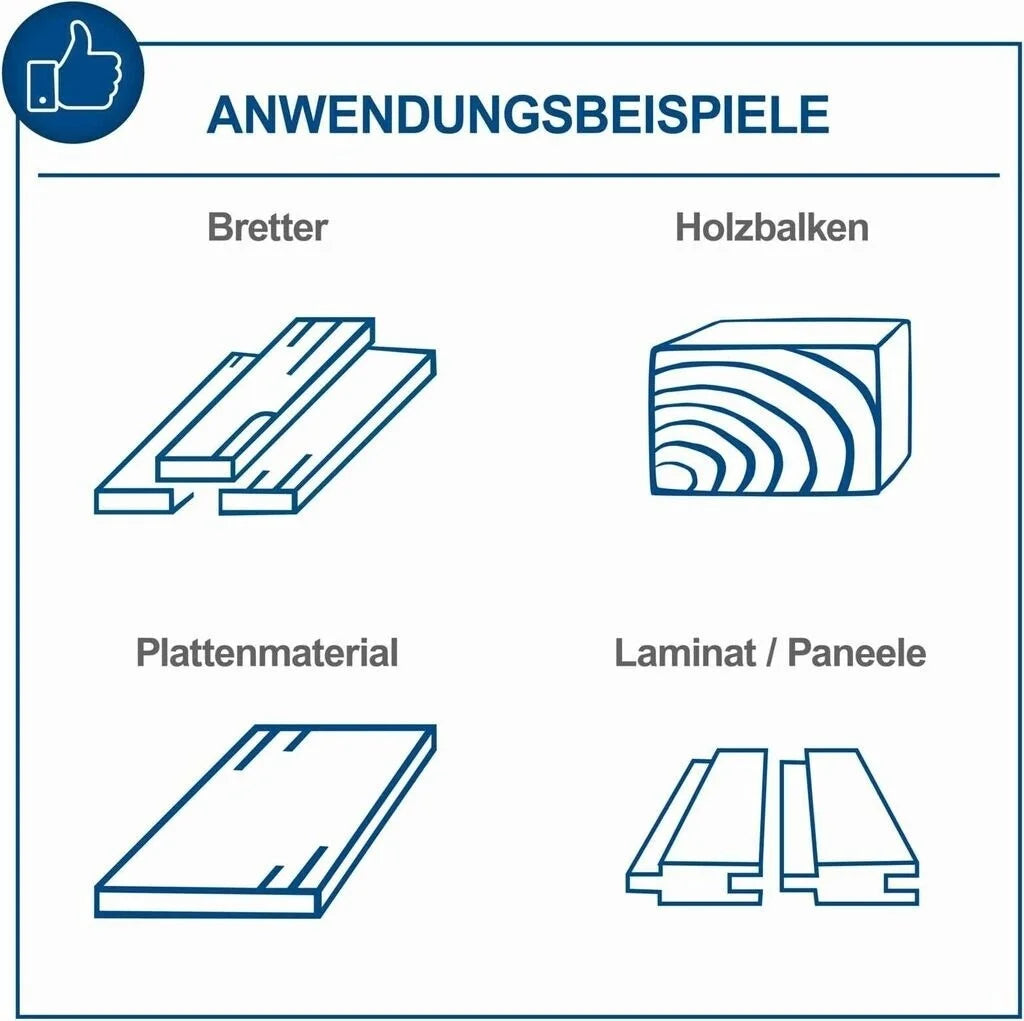

Recommended Applications:

• Precise cuts for carpentry and finishing work
• Construction of wooden furniture and structures
• Laying floors, skirting boards and strips
• Renovation and DIY work
• Corner cuts for frames and profiles
