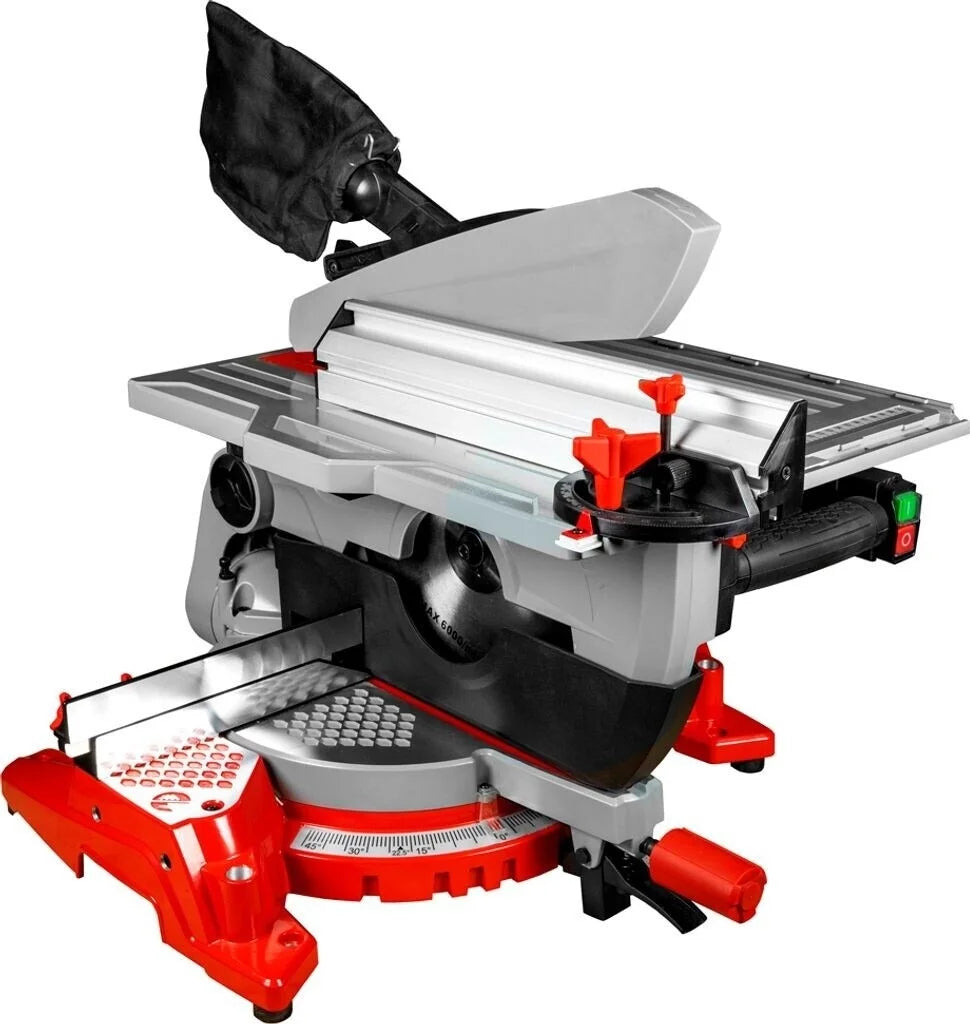

The TK305_230V combination saw is a versatile machine that combines the functions of a miter saw and a table circular saw , ideal for woodworking in hobby or semi-professional environments.
Thanks to its dual operating mode , it allows you to make precise crosscuts or work with longer materials on the upper table.
It is equipped with:
Upper surface in die-cast aluminium , sturdy and lightweight
Cutting head tiltable from 0° to 45° for oblique cuts

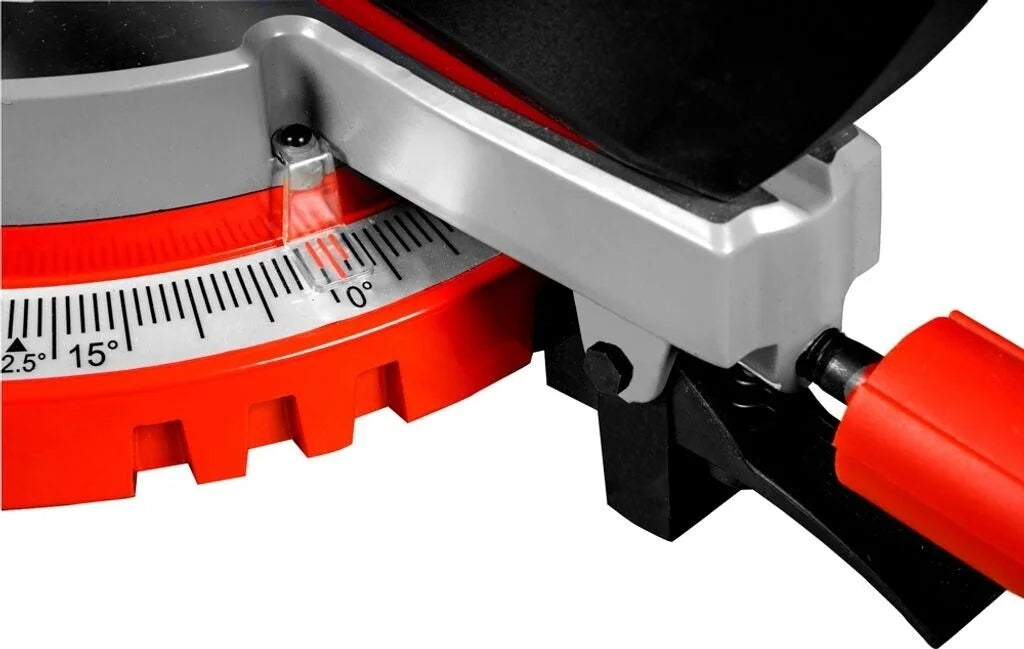

Rotary table for angled cuts from -45° to +45°
Transparent blade guard for added safety
Safety switch against accidental starting
Dust extraction connection , to keep the work area clean
This machine is perfect for straight, mitre and angle cuts on solid wood, panels, strips and similar materials.
Technical Data
| Characteristic | Value |
|---|---|
| Voltage | 230V |
| Engine power (S1) | 2000 W |
| Blade speed | 4200 giri/min |
| Old diameter | 305 mm |
| Lama forum | 30 mm |
| 90° cutting capacity | 180 x 85 mm |
| Cutting capacity 45° | 145 x 55 mm |
| Head tilt | 0° – 45° |
| Table rotation | -45° – +45° |
| Net weight | 20,5 kg |
| Gross weight | 22,5 kg |
| Machine dimensions | 970 × 650 × 490 mm |
| Packaging dimensions | 595 × 570 × 540 mm |
Strengths
Combined use: table saw and miter saw
Compact and lightweight, easy to move
Ideal for carpentry, DIY and small workshops
Safe, thanks to the switch and blade protection
Excellent for precise angled and inclined cuts
