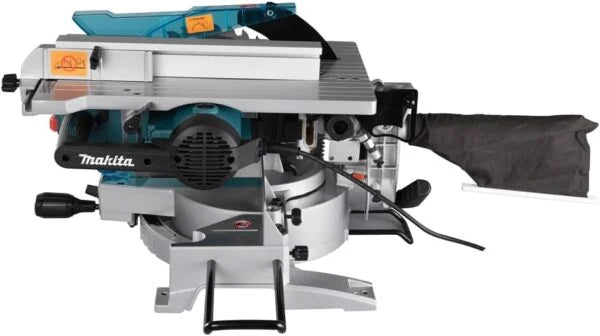

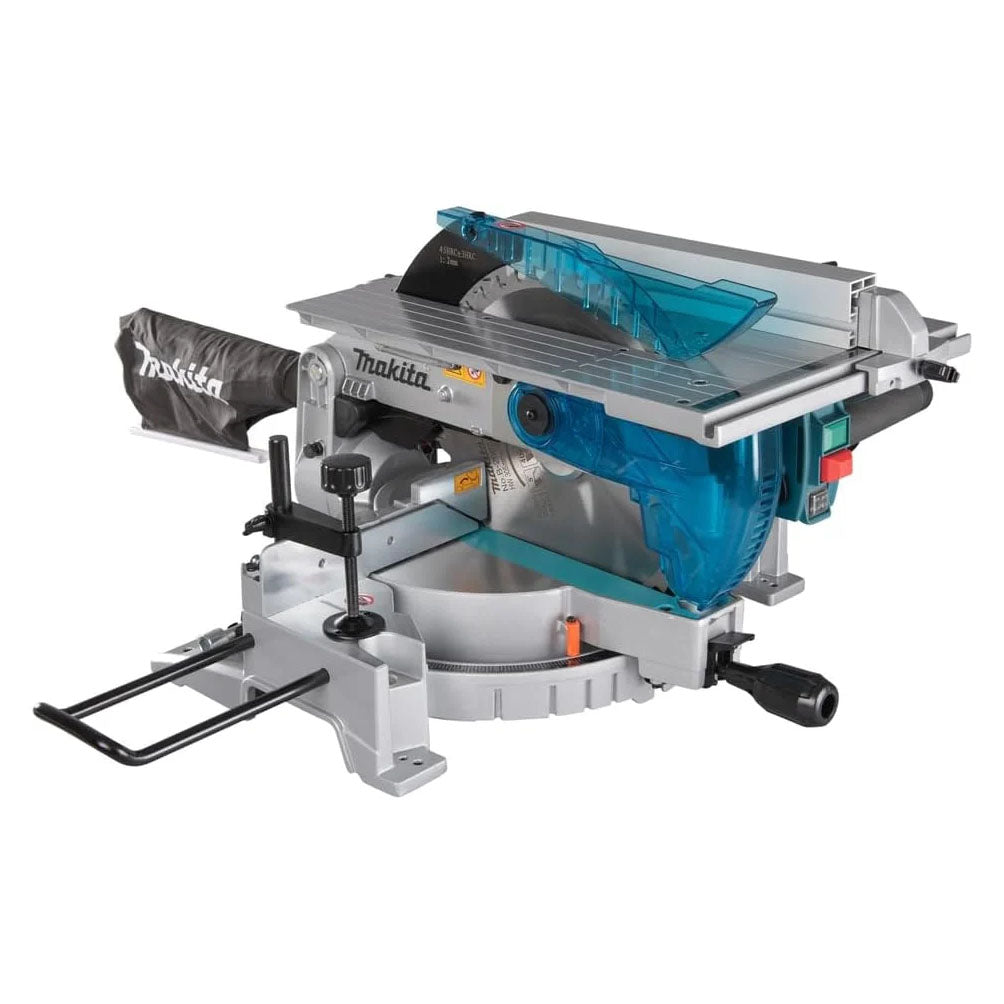

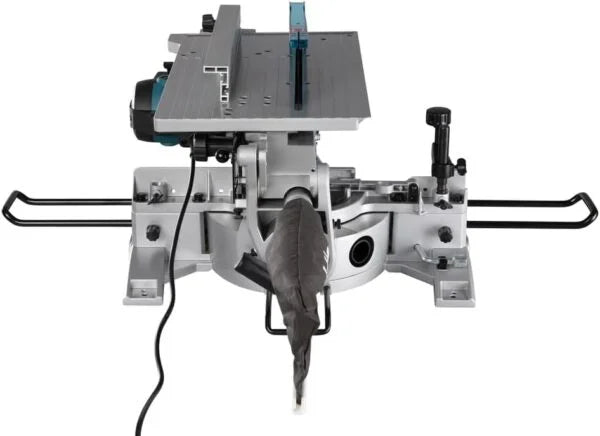

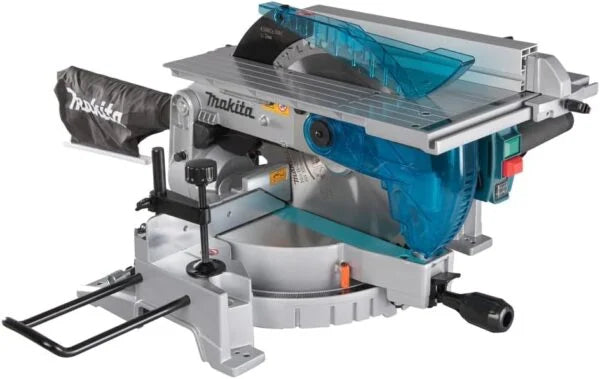

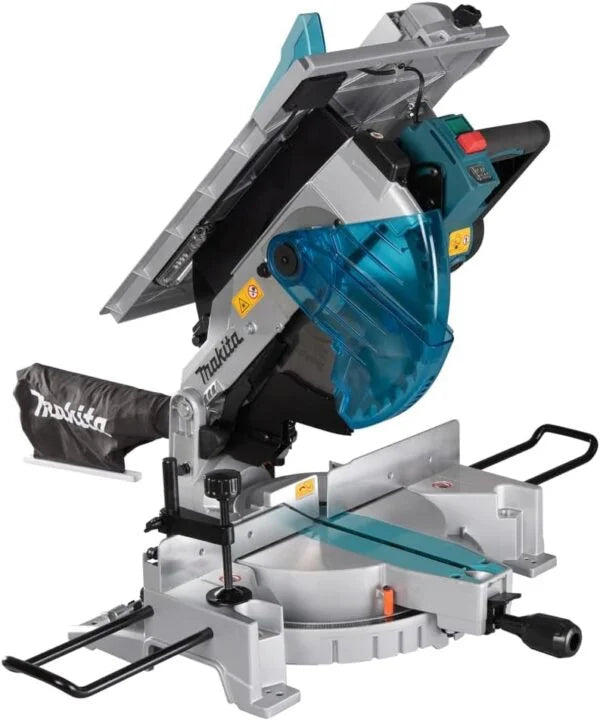

Makita benchtop miter saw with 305 mm blade, with the largest cutting capacity in its class. High cutting capacity up to 200 mm, ideal for cutting 200 mm laminated wood floors in a single pass. Supplied complete with vertical jaw and 2 side supports included in the basic equipment. Large aluminum top plate (46.5 x 30.7 cm) with integrated scale for easy viewing, for all types of cuts. Precise guide for the top plate, even for extremely fine cuts. Easy blade change. Access to the spindle by simply removing a screw. Effective individual extraction, one for the top cut and the other for the mitre cut. Equipped with an electric brake for greater safety. Work area illumination via 4 LEDs, offers a clear view of the cut line, even in dark places and when the tool cuts at a mitre. Integrated laser for easy viewing of the cutting line. Laser and light with separate switch, for use without having to start the machine. With new table elevation system that guarantees a height change.Other featuresPower: 1,650 WR.pm: 3,800 RpmOuter diameter of the disc: 305 mmInner diameter of the disc: 30 mm Cutting capacity at 90: 95 x 155 mm Cutting capacity with 90 table: 52 mm Cutting capacity 45: 95 x 110 mm Bevel cutting capacity 45: 64 x 155 mm Weight: 20.7 kg Cable length: 2.5 m Soft start: Yes Anti-restart system: Yes Axle lock: Yes Electric brake ico: Yes Integrated lighting: Yes Dimensions. LxWxH: 610 x 535 x 692 mm Connectable to a vacuum cleaner: Yes x81 Cutting angle left/right: 45 – 0° Max. mitre range: 47 – 52° Sound pressure level: 93 dB (A) Vibration uncertainty (K): 1.5 m / sec² Sound uncertainty (K): 3 dB (A) Vibration emission: 2.5 m / sec² Sound power level: 106 dB (A )
| Producer |
See |
| Item code |
LH1201FL/2 |
| Product dimensions |
24,02 x 21,06 x 27,24 cm; 20,7 kg |
| Pile |
1 A (Battery type required) |
| Item model number |
LH1201FL |
| Color |
Silver |
| Power supply type |
2.5m power cord |
| Voltage |
240 Volts |
| Wattage |
1650 watt |
| Number of articles |
1 |
| Number of pieces |
11 |
| Efficiency |
1650 W |
| Handle/lever material |
Plastic |
| Blade length |
30.5 Centimeters |
| Speed |
3800 revolutions per minute |
| Measurement system |
Metric |
| Special functions |
Saw blade with |
| Components included |
Guideline |
| Batteries included? |
No |
| Batteries required? |
No |
| Item weight |
20,7 Kilograms |
About this article
- MAKITA LH1201FL – Miter with 305mm table
