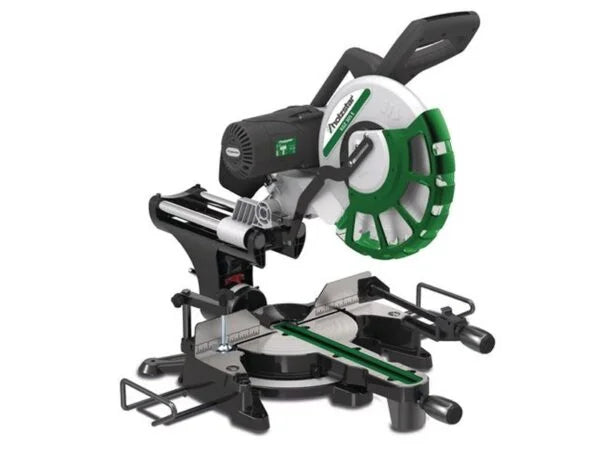

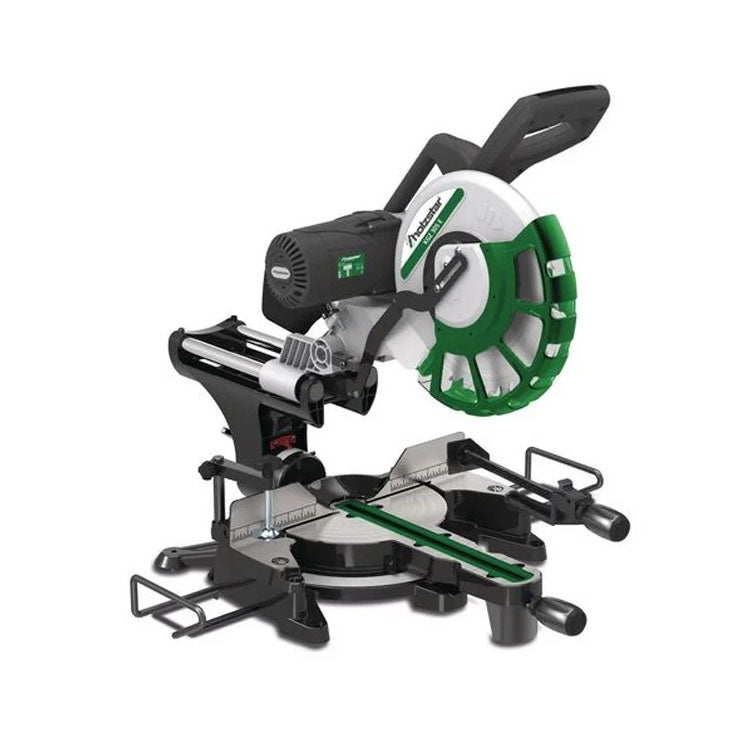

The KGZ 305 E from LTF Holzstar is a robust, compact, and easily transportable radial miter saw for wood, weighing just 23 kg. Powered by a powerful 2000 W single-phase motor , it reaches a maximum blade speed of up to 4500 rpm.

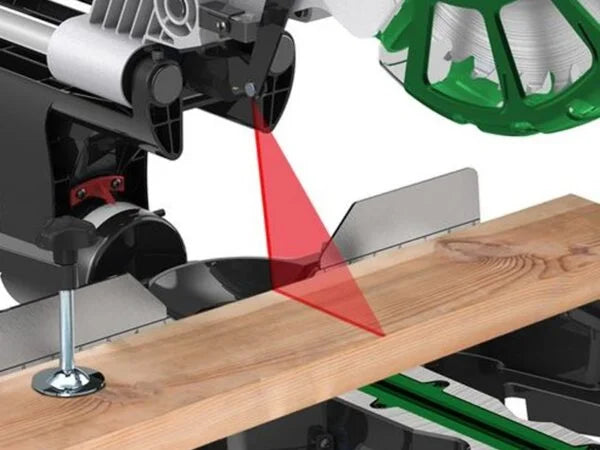

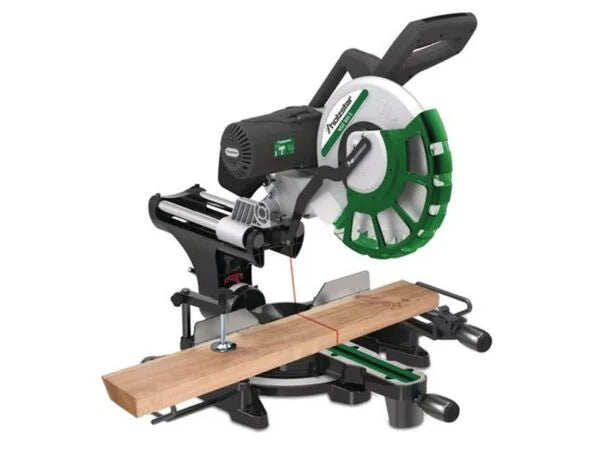

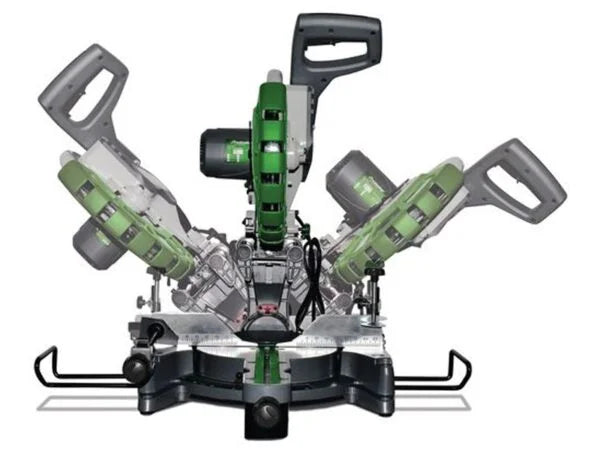

Equipped with a 305 mm disc, it has a cutting capacity of 100 x 340 mm at 0°, while the capacity at 45°/45° is 40 x 340 mm. Equipped with a rotating base in die-cast aluminum , double tilt and 45° cutting adjustment and laser for precise control of the cutting line .

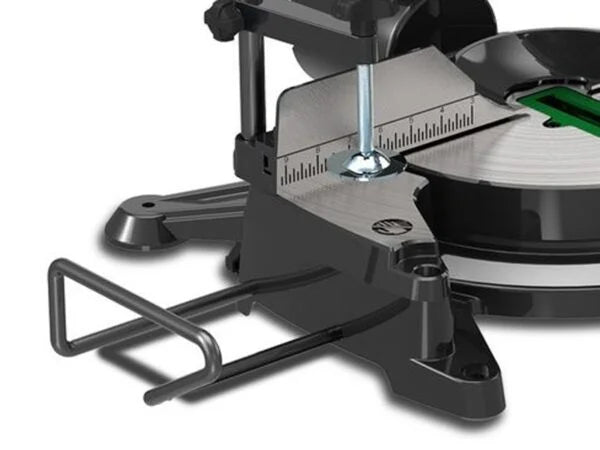

The guides are adjustable and the support can be extended laterally to better cut longer pieces . The central part is equipped with an ergonomic handle, which offers comfort and stability during cutting operations .
Equipment:
Technical Data
| Old diameter | 305 mm |
| Blade speed | 4500 rpm |
| Engine power | 2.0 kW 230V |
| Dimensions | 835 x 570 x 790 mm |
| Weight | 23 Kg |
| Cutting capacity | |
| 0° cut | 100 x 340 mm |
| 45°/0° cut (left) | 40 x 340 mm |
| 45°/0° cut (right) | 40 x 340 mm |
| 0°/45° cut (left) | 100 x 240 mm |
| 45°/45° cut (left) | 40 x 240 mm |
| 45°/45° cut (right) | 40 x 240 mm |
