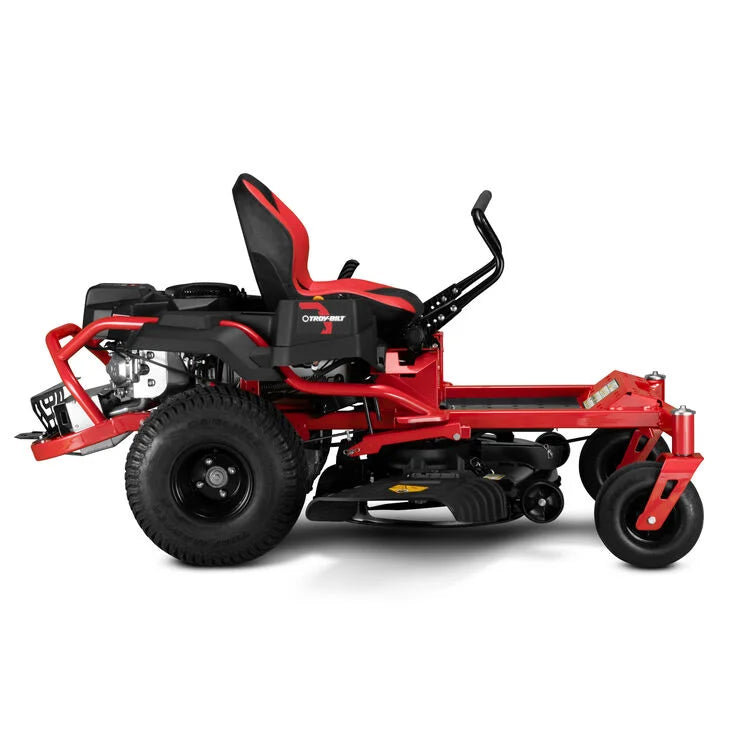

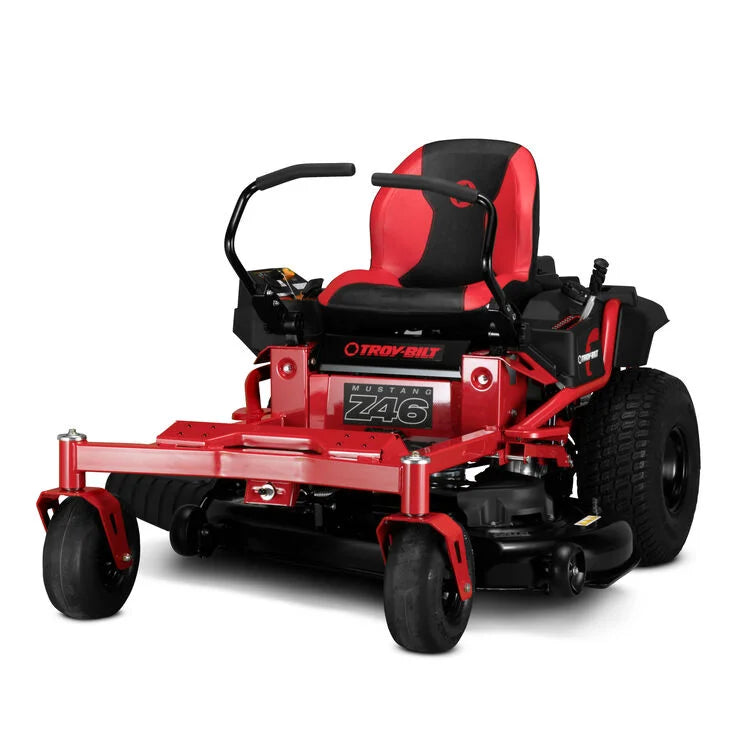

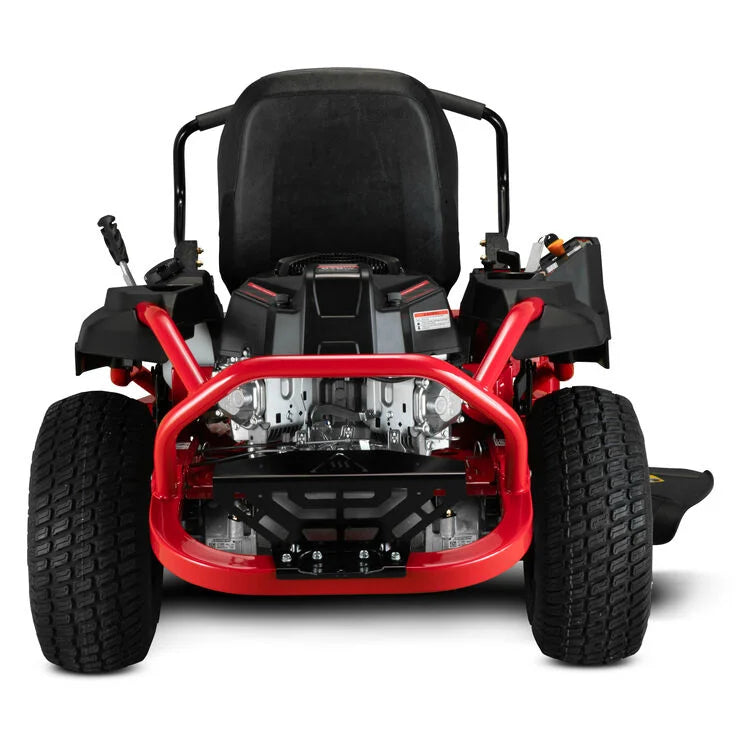

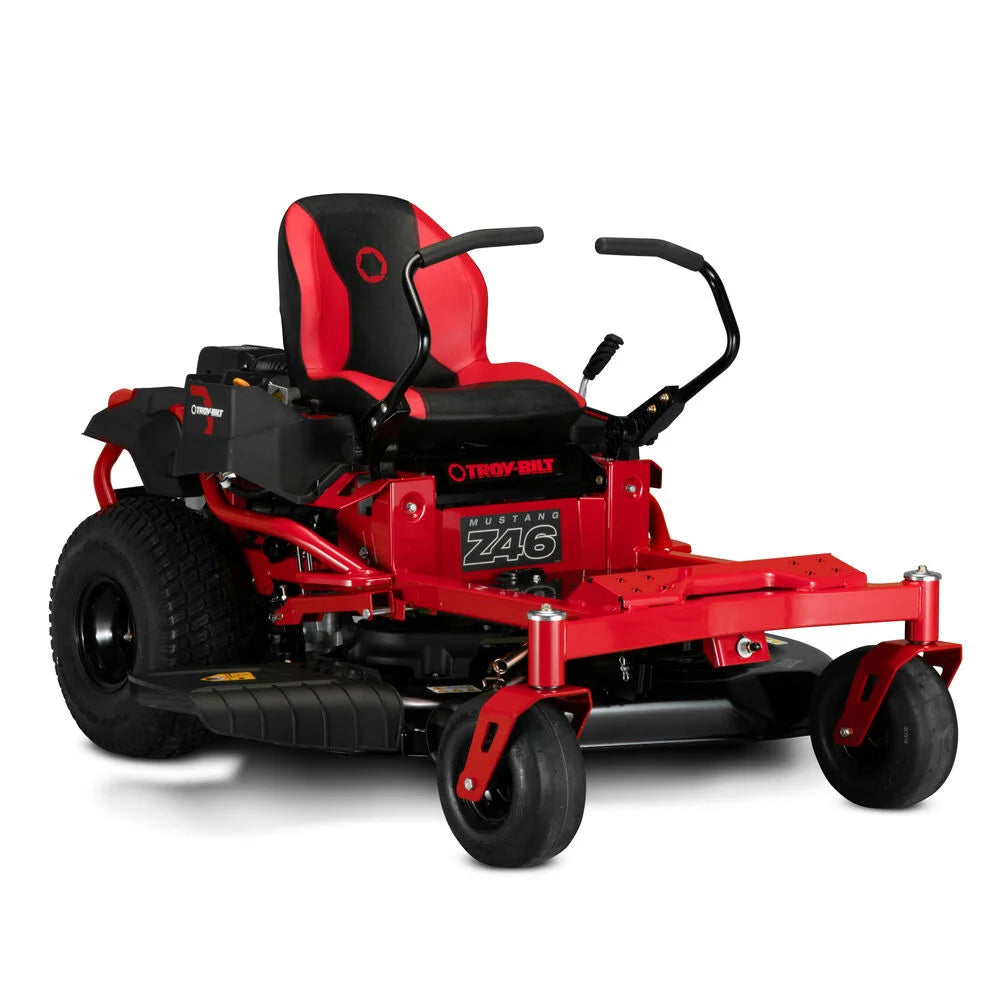

Get the job done fast with the Troy-Bilt® Mustang™ Z46, designed to quickly turn at the end of a row and mow around trees and landscape beds with dual hydrostatic transmissions. The rugged steel frame is engineered to absorb impact, provide stability, and is covered by a limited lifetime warranty. Quickly engage the cutting blades with the electric PTO and ride comfortably with the adjustable high-back seat and foam grip steering controls. A KOHLER® engine provides the power for your lawn care needs
Feature
- Powerful 22 HP*/747cc KOHLER® twin-cylinder engine designed to deliver quiet, balanced performance
- Full-length, fully welded, 2″ tubular steel frame is designed to absorb impact, provide stability and is covered by a limited lifetime warranty
- Dual hydrostatic transmissions deliver true zero-turn performance and are designed to help quickly cut and maneuver around obstacles while mowing
- 46″ twin blade cutting deck with two anti-scalp deck wheels helps prevent turf damage and is engineered to deliver a clean, even cut.
Engine
- Engine BrandKohler®
- Engine Model7000 Series
- Engine Model NumberKT722
- Engine Displacement747cc
- Engine Output22HP
- Starter TypeElectric
- Fuel Tank Capacity3.5 gallons (13.25 Litres)
- CylindersTwin
- Engine StartIgnition Key
- Engine Oil Capacity2.0 qts. US (1.89 L)
- LubricationFully pressurized
- Charging System12 amp regulated
- Fuel GaugeNo
- GovernorMechanical
- ChokeChoke-a-matic
- Air FilterDual element
- Oil FilterYes
- Fuel DeliveryCarburetor
Battery
- Battery210 CCA
- Battery TypeAGM (Absorbent Glass Mat)
- Battery Voltage12V
Drive System
- TransmissionHydro-Gear™ EZT-2200
- Forward Speed7 MPH / 11.3 Km/H
- Reverse Speed3.5 MPH / 5.6 Km/H
- Drive SystemHydrostatic
- Transmission HousingCast aluminum
Cutting Deck
- Deck Cutting Width46 in
- Deck WashYes
- Deck Material12-gauge steel
- Deck Engagement (PTO)Electric
- Deck ConstructionStamped
- Blade(s)2
- Deck LiftFoot pedal
- Cutting Height Range1.25″-3.75″
- Anti-Scalping2 gauge wheels
- Deck Positions8
Chassis
- Frame2” x 2” tubular steel
- Turning Radius0°
- ROPSNo
- Rear Tow HitchYes
- Corrosion ProtectionYes
Controls
- Cruise ControlNo
- BrakesDisc
- Steering ControlLap Bars
Comfort
- Seat Type18″ high back
- ArmrestsNo
- Seat AdjustmentKnob
Wheels
- Rear Tires20”x8-8”
- Front Tires11”x6”-5”
- Tire TreadTurf Master / Multi Trac
Additional Specifications
- Hour MeterAvailable separately
- Mulch KitAvailable separately
- Headlight(s)No
- Cup HolderYes
- Operator Presence SystemYes
- Parking BrakeLap Bar Integrated
- Model Number17ARFACTA66
Warranty
- Residential Warranty3-year limited
- Frame WarrantyLifetime Limited
- Deck Shell Warranty3-year limited
- Commercial WarrantyNo
