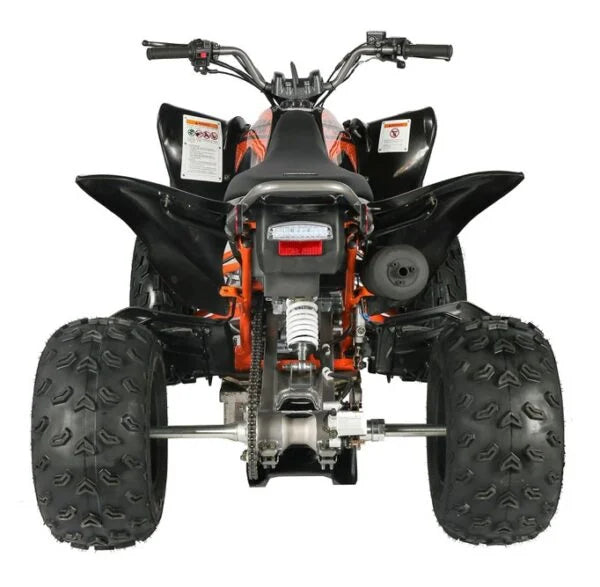

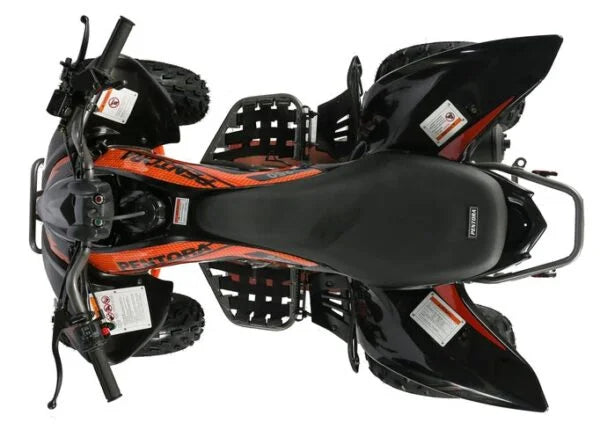

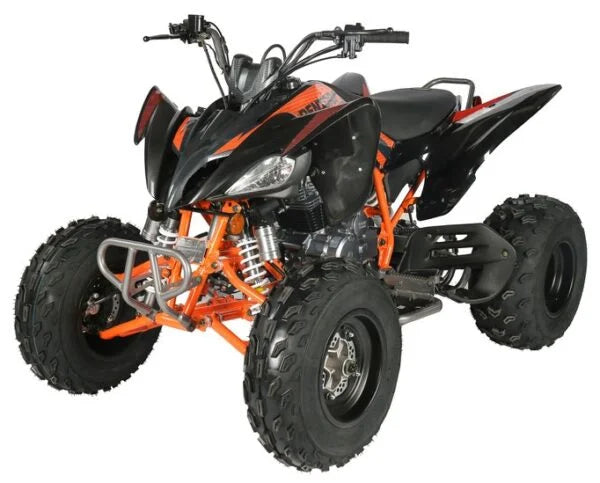

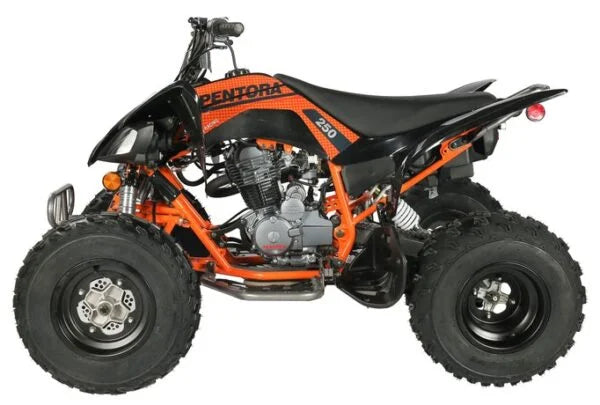

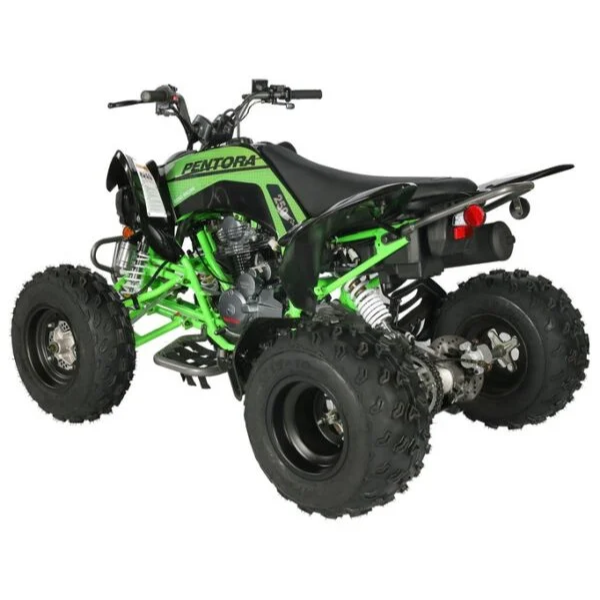

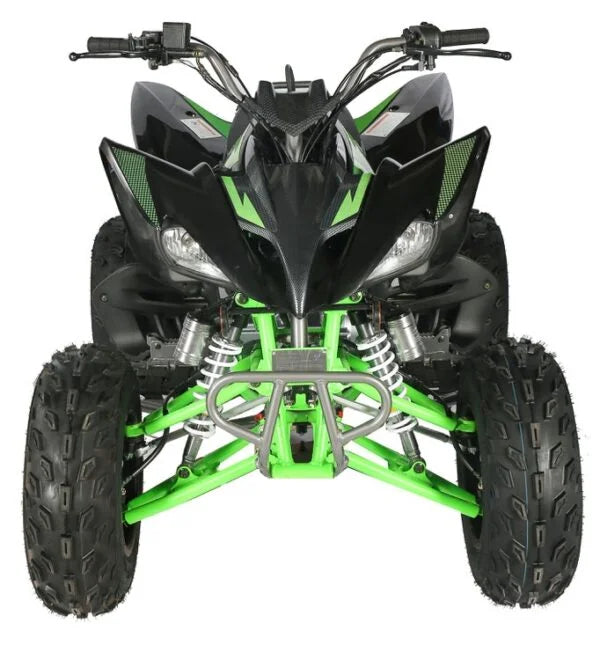

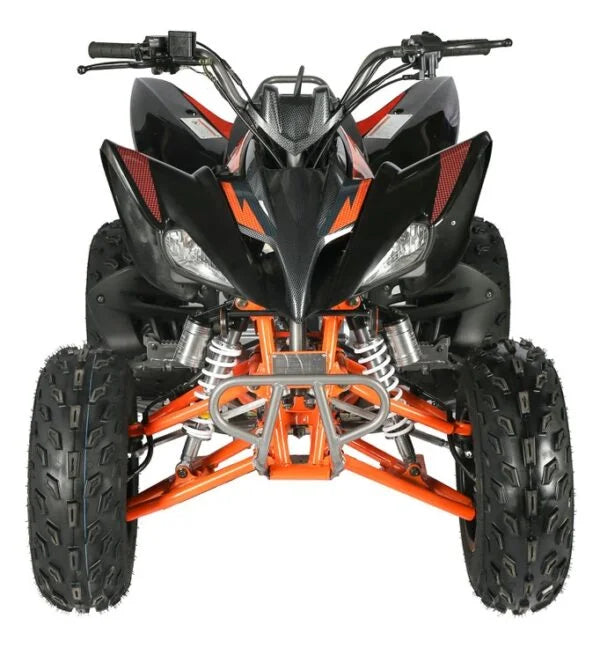

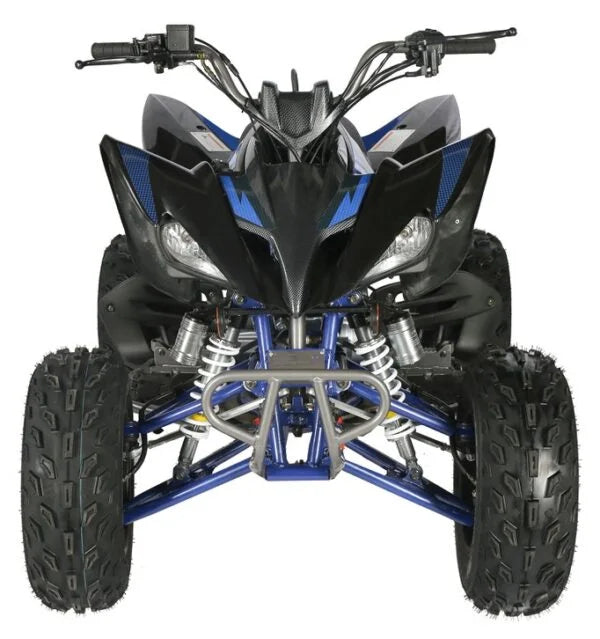

Vitacci Pentora Racing ATV

SPECIFICATION

SPECIFICATION

PARTS SPECIFICATION

L×W×H

1625*1060*1065

WHEELBASE

1090±20mm

FRONT WHEELBASE

820mm

REAR WHEELBASE

830mm

MINIMUM GROUND CLEARANCE

135±15mm

SEAT HEIGHT

790±15 mm

RIDE HEIGHT

225mm

HANDLE HEIGHT

1000mm

PACKING SIZE

1460*880*860mm 62pcs/40HQ

MINIMUM TURNING CIRCLE DIAMETER

5900±500mm

TURNING ANGLE

<45°

RATED LOAD

100kg

NET WEIGHT

149kg

GROSS WEIGHT (WITH PACKING)

177kg

F&R BRAKE

F&R HYDRAULIC DISC

F&R BRAKE OPERATION TYPE

FRONT HAND BRAKE, REAR FOOT BRAKE

F&R RIM

10*5.5AT/9*8.0AT

F&R TYRE

AT20*7.0-10/AT19*10-9

TRANSMISSION

CHAIN

TECHNICAL SPECIFICATION

FUEL TANK

9L`

BATTRY

12V/7HA `

MAXIMUM SPEED

70km/h

SPECIFICATION

STARTING PERFORMANCE

15S

CLIMBING PERFORMANCE

21°

PARKING PERFORMANCE

≥18°

EMISSION INDEX

CO (%)

≤3.8

HC(PPm)

≤800

         db.(A)

≤82 dB(A)

ENGINE SPECIFICATION

MODEL

LC166FMM

TYPE

SINGLE CYLINDER、250cc air cooler 2 valves、4-STROKE

BRAND

LONCIN

BRORE×STROKE

65.5×66.2mm

capacity

223mL

COMPRESSION RATIO

9.0:1

MAX.POWER

12（1±5%）kW /7500（1±5%）rpm

MAX.TORQUE

17（1±5%）N · m /6000（1±5%）rpm

Min  no load speed

1500（1±10%） r /min

 min fuel consumption rate

354g / kw.h

Fuel no.

≥RQ90

CLUTCH METHOD

Manual

Start

Electrical start

cdi

C.D.I

PARTS SPECIFICATION

carb

PZ30

Spark plug

D8TC

Front light

12V18-18W

TECHNICAL SPECIFICATION

Max speed

70km/h

Start time

15S

break

前轮力和

≥60%

前轮力差

≥55%

后轮力和

≤20%

后轮力差

≤24%

CLIMBING PERFORMANCE

21^°°

PARKING PERFORMANCE

≥18%

EMISSION INDEX

CO (%)

≤3.8

HC(PPm)

≤800

db(A)

≤82 dB(A)

Starting acceleration（S）

≤8

Speed acceleration（S）

≤8

Parts spec

Tank capacity

9L

Fr. & re suspension

Oil dumper

Fr. &re suspension

L=350 m m /L=390 m m
